High-Speed Disperser Mixer in India

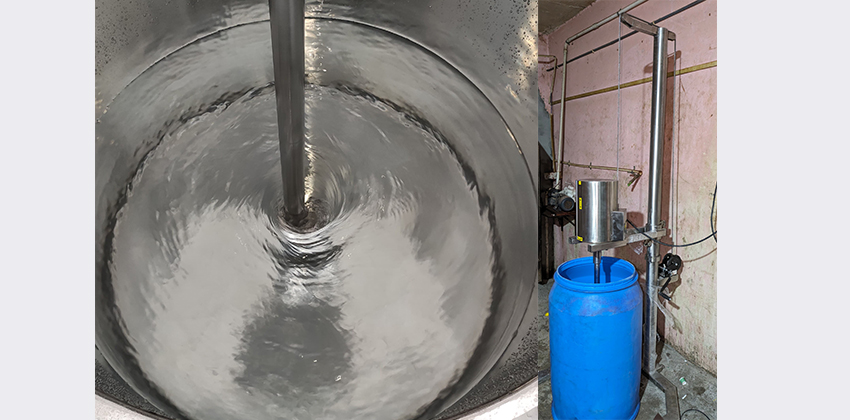

High-Speed Disperser Mixer in India can create the desired vortex along with rigorous turbulent flow. Solids are charged into the vortex zone for immediate dispersion. Depending on the vortex depth, the disperser blade, such as the MCD Cowl Disc, can be positioned on or off-centre.
As fluid viscosity changes, the operating speed of the cowl disc can be varied through an external VFD to maintain the vortex and improve dispersion efficiency. High-speed disperser mixers can have one or two dispersion impellers based on tank geometry.
High-speed disperser design needs careful development from a mechanical perspective since operating speeds generally range from a few hundred rpm to 2,800 rpm. Such machines need to be low on vibrations, shaft runout, and deflection.
Hence, the shafting must be of high precision, balanced, and controlled tuned shaft. Efficient manufacturing processes help achieve these mechanical performances.
A high-speed disperser comes with optional features and varied scopes on drive arrangements (direct, belt drive), lifting arrangements (mechanical, hydraulic, pneumatic), safety interlock to prevent starting if no vessel is present, VFD panel for speed adjustments, and trolley-mounted tanks. Surface finishes for the wetted part can be customized to suit specific applications.
Features
- Simple and robust design
- Can be adapted to most mixing and dispersing tasks because of the wide variety of available generators
- Capable of operating under pressures of up to 10 bar
- When using special materials, capable of operating with temperatures up to approximately 160°C
- Comes in various different sizes for batch volumes from 100 to 2000 litres
- All parts that come in contact with the product are made of SS 316
- Special materials and top-quality surface finishes are possible.
