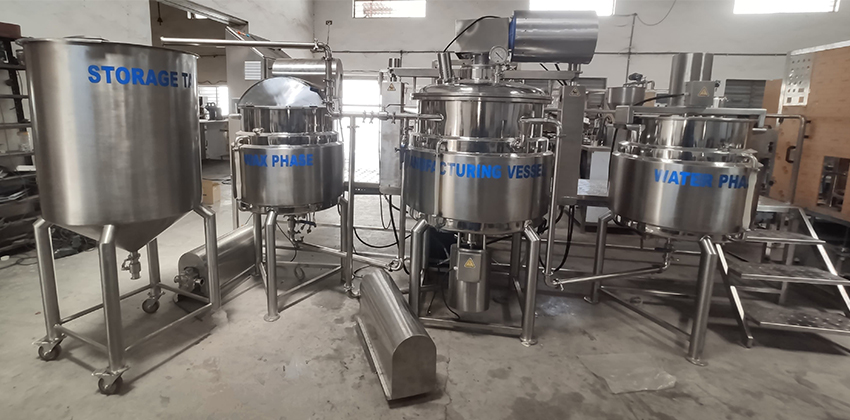

Ointment Manufacturing Plant in india
Ointment Manufacturing Plants in india are ideal tools for the pharmaceutical and cosmetic industries for producing ointments, creams, lotions, toothpaste, and other emulsions and homogenizations.
Size: 100 to 2,000 litres
They are specially designed to address two critical factors that directly affect the quality of ointments and creams:
- Minimal manhandling of the ointment
- Negligible vacuum drops during mixing and blending
- Additionally, they offer the benefit of effective manpower utilization.
Equipment and Accessories
- Manufacturing Vessel
- Wax Phase Vessel
- Water Phase Vessel
- Storage Vessel
- Vacuum Pump
- Control Panel
- Product Piping
- Working Platform
- Material Transfer Pump to transfer material from the Manufacturing Vessel or to the Storage Vessel and from the Storage Vessel to the Ointment (Tube) Filling Machine (2 nos.).
- The entire plant can be operated by a centralized operating panel. The plant is equipped with an electrical control panel with digital temperature indicators and digital timers.
Features
- The plant is designed to be operated by only one operator and one helper.
- All material transfers are done by vacuum or transfer pumps.
- All contact parts are made of SS 316 quality material, finished to class 4B (mirror) finish, and are crevice-free.
- Homogeniser with internal and external circulation
- Anchor agitator with scrapers for horizontal and vertical mixing
- Short heating and cooling times
- Hygienic and dead space-free construction
- cGMP
- Optionally with CIP/SIP
- All vessels are suitable for an internal pressure of 1 kg/sq. cm and can be sterilized.
- All pipes, pipe fittings, and valves are made of SS 316 seamless quality, internally electro-polished, with tri-clover ended joints.
- All inlet and outlet connections are provided with tri-clover joints, which are very easy to clean and replace.
